Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tiêu chuẩn tham khảo: | IEC62262, IEC60068-2-75 | Chất liệu của phần tử nổi bật: | Thép |
|---|---|---|---|
| Chất liệu của giàn khoan: | Hợp kim nhôm | Năng lượng tác động: | IK07 (2J), IK08 (5J), IK09 (10J), IK10 (20J), IK11(50J) |
| Chế độ phát hành: | Phát hành thủ công | góc tác động: | 0 ~ 90 độ |

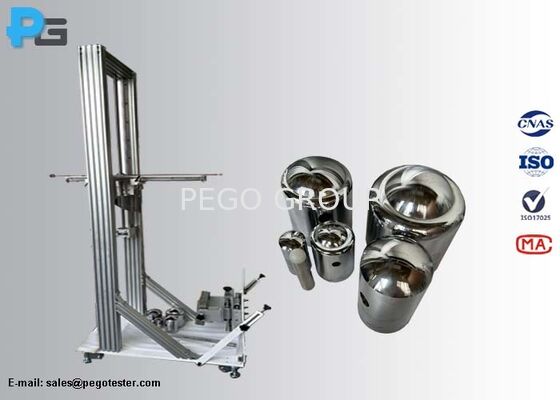

| Làm nổi bật: | 0~90 Degree Impact Angle Pendulum Hammer,IK07 to IK11 Tests Impact Test Apparatus,Steel Striking Element Mechanical Impact Tester |
||
| Swing Pipe | Steel pipe 1 (Length: 1000mm, outer diameter: 15.9mm, thickness: 1.5mm) for energies exceeding 2J Steel pipe 2 (Length: 1000mm, outer diameter: 9.0mm, thickness: 0.5mm) for energies not exceeding 2J |
|---|---|
| Impact angle | 0~90° |
| Lifting stroke | 200-1200mm |
| Impact hammers | Striking elements: 2J for IK07 test, 5J for IK08 test, 10J for IK09 test, 20J for IK10 test, 50J for IK11 tests Material: steel |
| Equivalent mass of hammers | ≤1J: 0.2KG, IK07: 0.5KG, IK08: 1.7KG, IK09: 5KG, IK10: 5KG, IK11: 10KG |
| Hammer release method | Manual release |
| Mounting Fixtures | Flat mounting plate for IK07 to IK10 tests, adjustable angle 0-90°, equipped with M6 screw holes |
| Model (energy) | 2J | 5J | 10J | 20J | 50J |
|---|---|---|---|---|---|
| Equivalent mass/kg | 0.5 | 1.7 | 5 | 5 | 10 |
| Height of fall±1%/mm | 400 | 300 | 200 | 400 | 500 |
The equipment includes a dial to indicate the falling height. Simply pull the swing pipe to the corresponding height and release it.

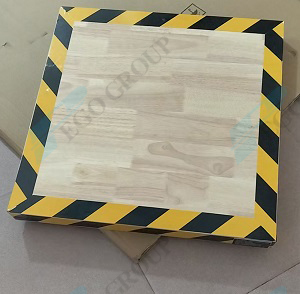

The equipment includes a flat mounting fixture with M6 screw holes. Lighter samples can be placed on the mounting plate, which can be tilted 0-90°. For heavier or larger samples, they can be placed directly on the ground.
After the initial impact, grasp the striking element by hand to retain the hammer, being careful to avoid the arm to prevent distortion. While electronic brake devices are available, they carry a risk of swing arm deformation.
The equipment ships fully assembled and requires no installation service.
